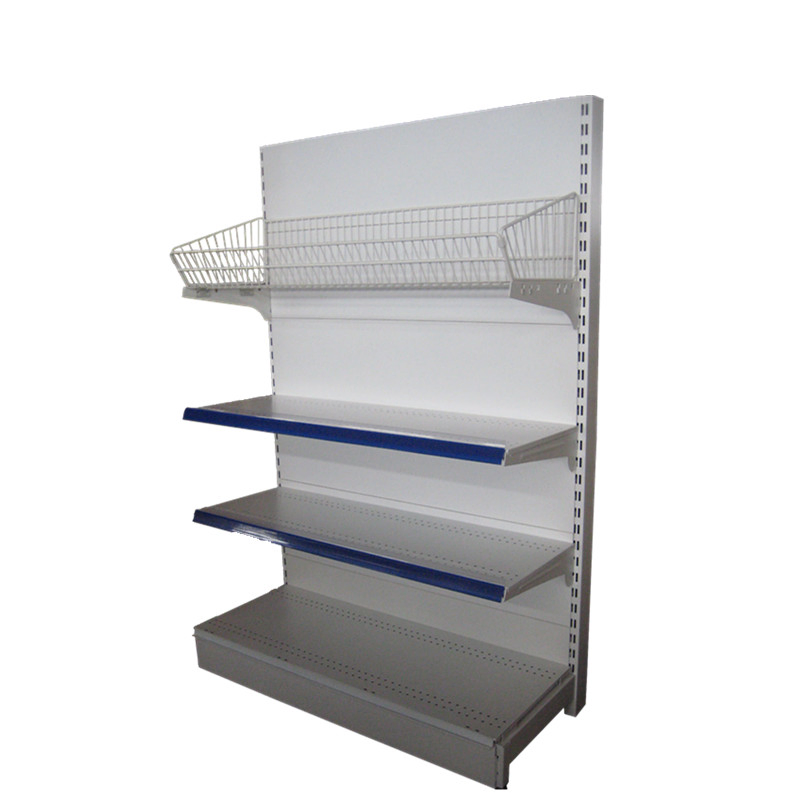

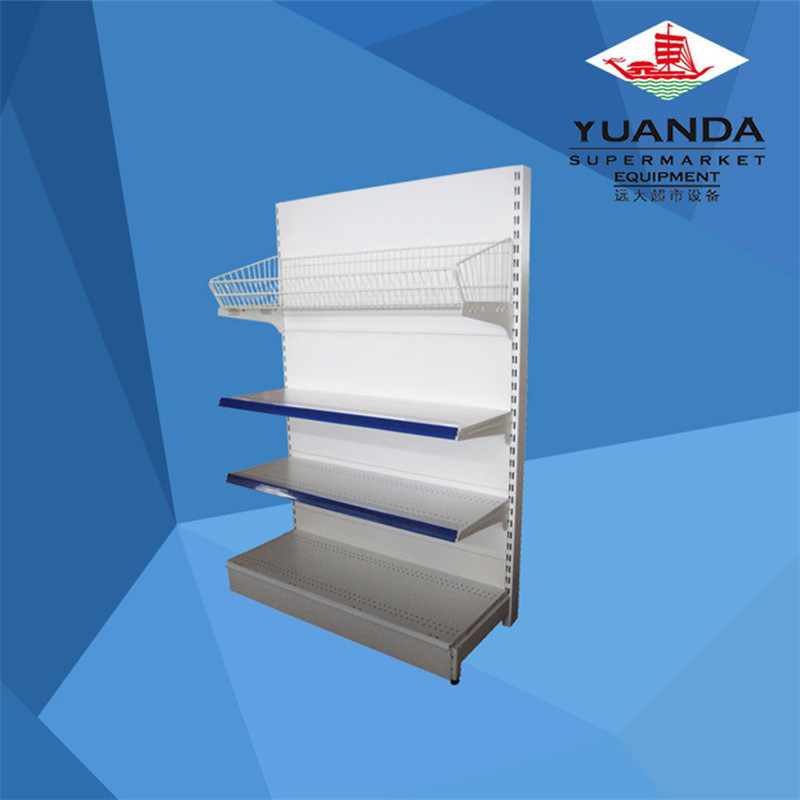

Chinese Suppliers Basket and Board Commodity Display Shelves

1 / 4

Chinese Suppliers Basket and Board Commodity Display Shelves

Customization:	Available
Material:	Steel
Style:	Backplane Style

Send Inquiry

Product Description

Basic Specifications

Model NO.

YD-S007

Side Number

Single Sided

Weight

Middle Weight

Usage

Shop, Supermarket, Drug Store

Color

White/Black/Red/Customized

Capacity

80-120kg/Layer

Layer

1-7 Layers

Surface

Powder Coated

OEM/ODM

Available

MOQ

10 Sets

★

Product Highlights

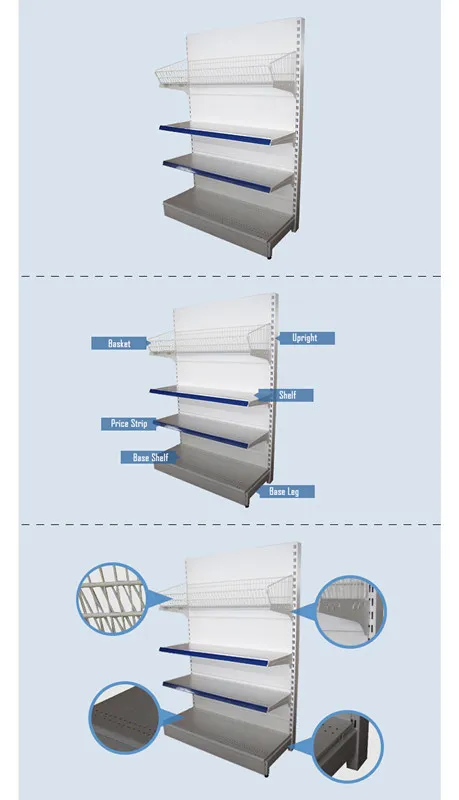

Basket and Board Commodity Display Shelves

Components	Size Type	Options (mm)
Upright	Section Size	30x60 / 30x80 / 40x60 / 40x80
	Height	1350 / 1500 / 1800 / 2000 / 2200 / 2400
	Thickness	1.5 / 2.0 / 2.5
Base Leg	Length/Height	Length: 200-550 / Height: 60-260
Shelf	Width/Depth	W: 200-550 / D: 900-1200
Shelf	Thickness	0.7 / 0.8
Wire Shelf	Diameter	3.2 / 5.0
Back Panel	Thickness	0.4 to 1.0 (Multiple options)

📦

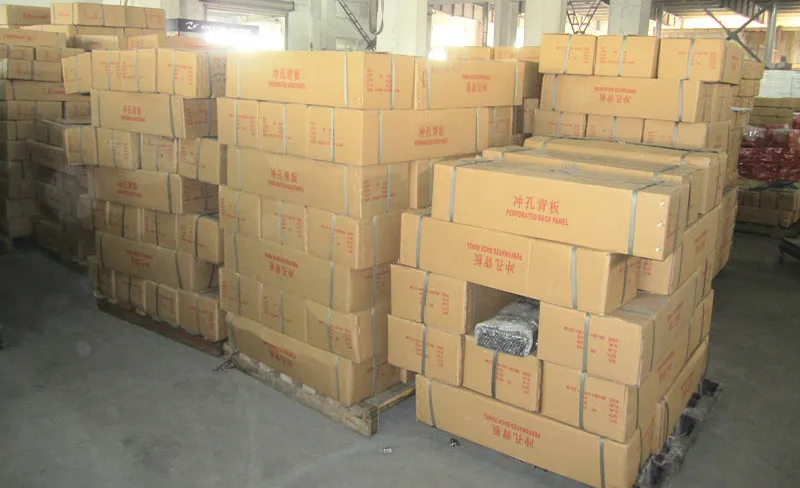

Packing & Shipping

Knock-down package for efficient supermarket shelf transportation.
Boards and brackets are secured in standard export cartons.
Uprights are protected using poly bubble films.

🏠

Showroom Display

Frequently Asked Questions

What is the load capacity of these shelves?

The load capacity is approximately 80-120kg per layer, making it suitable for middle-weight retail goods.

Are custom colors and sizes available?

Yes, we offer White, Black, and Red as standard, but customized colors and sizes are available through our OEM/ODM services.

How many layers can the shelving units have?

The units are highly adjustable and can be configured with anywhere from 1 to 7 layers depending on your display needs.

What kind of surface treatment is used?

The shelves feature a high-quality powder-coated finish, providing durability and a professional appearance. Zinc finishes are also available.

What is the Minimum Order Quantity (MOQ)?

The minimum order quantity for these display shelves is 10 sets.

How are the products packaged for international shipping?

We use a knock-down package design. Boards and brackets go into standard export cartons, while uprights are wrapped in poly bubble films for maximum protection.
