Basic Specifications
Weight Capacity
500kg-1500kg
Feature
Corrosion Protection

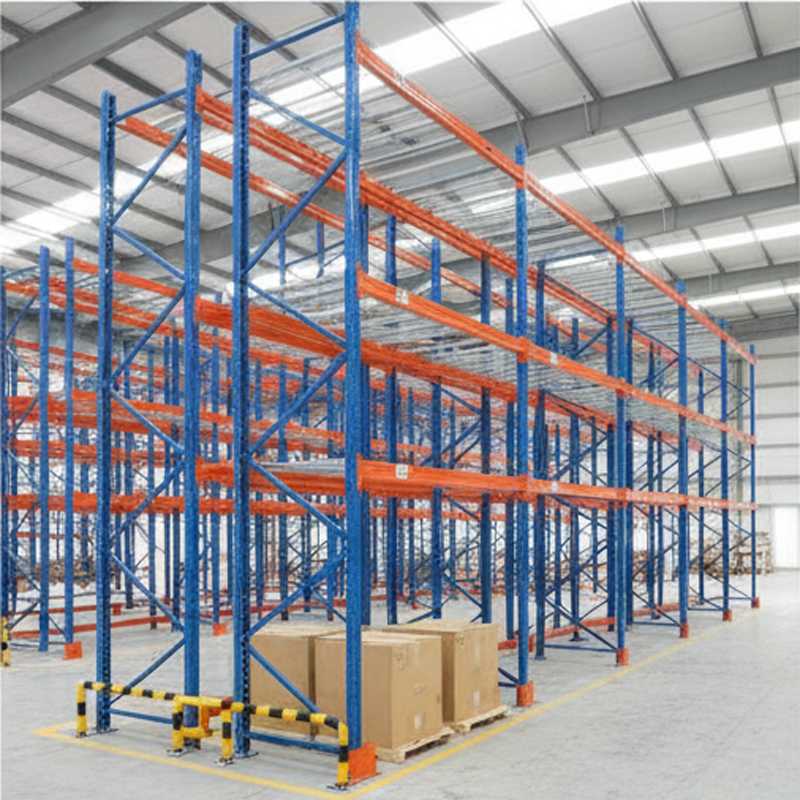

Product Overview

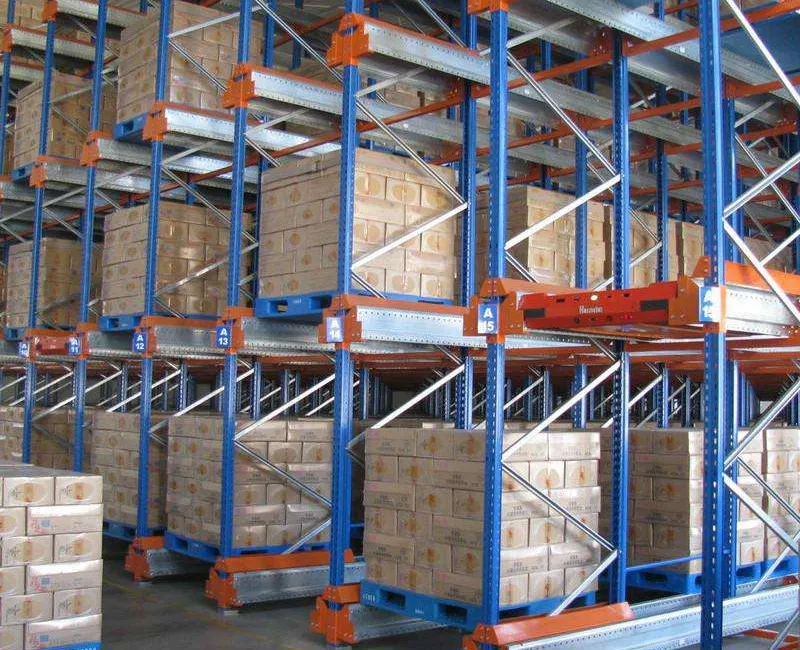

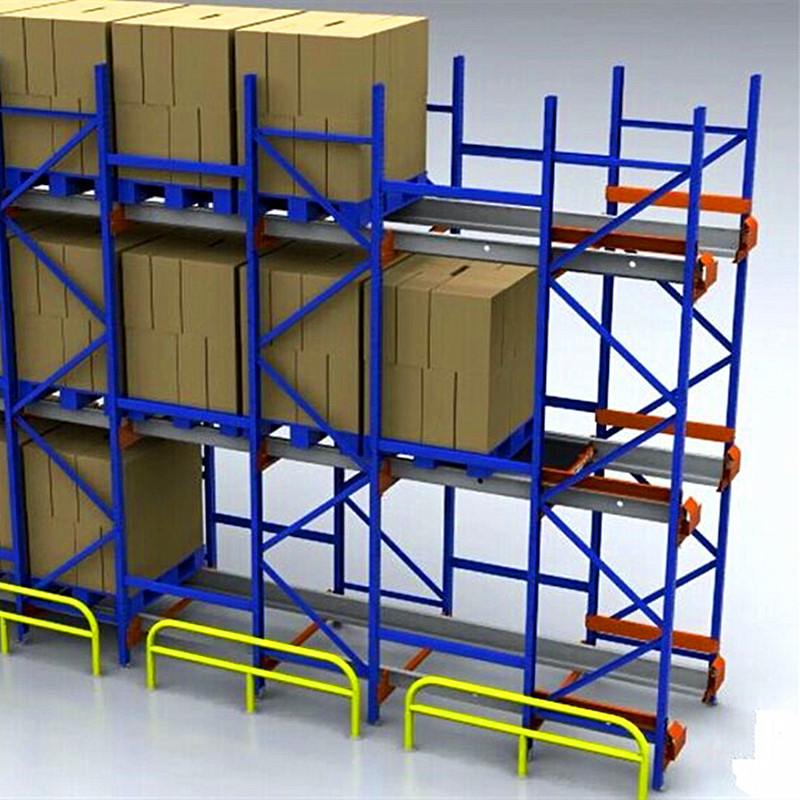

Shuttle rack system is a high-density storage solution composed of racking, shuttle, and forklift. This innovative system significantly boosts operational efficiency compared to traditional storage methods, enabling warehouse space utilization of more than 80%.
Key Operational Features

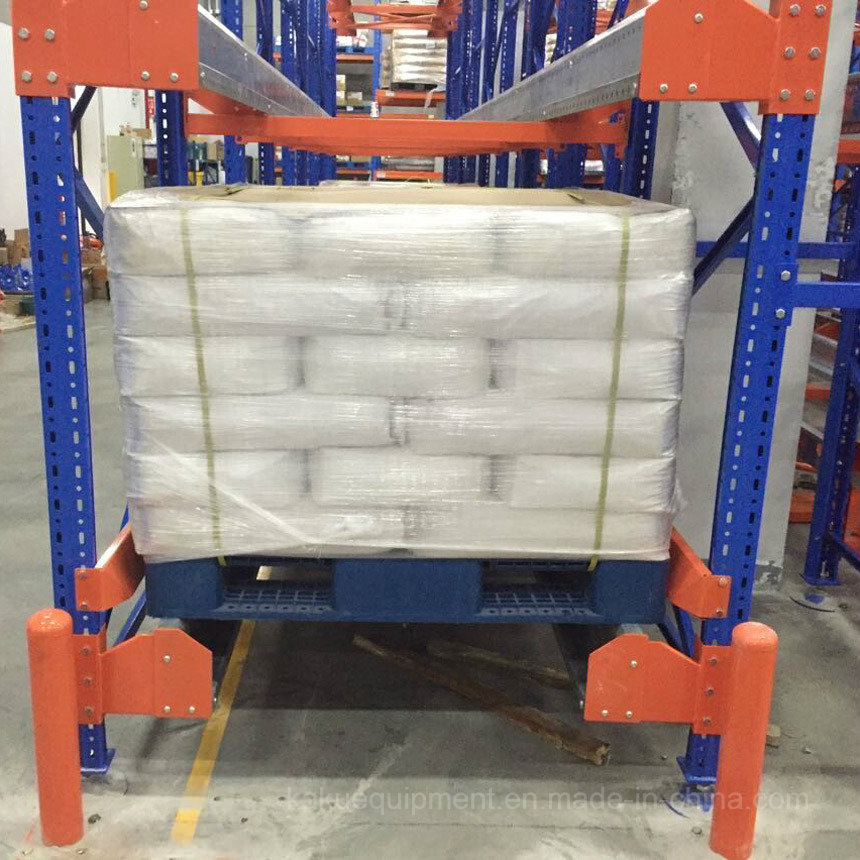

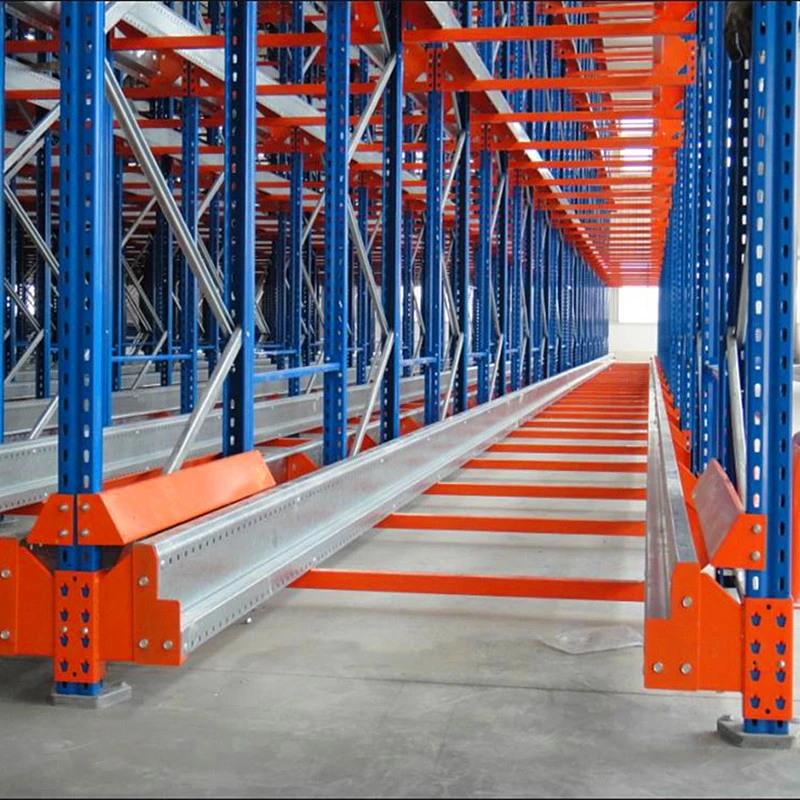

- Pallet Loading: Forklifts place pallets on the racking tunnel rail. The radio-controlled shuttle then carries the pallets along the rail into the system.
- Pallet Picking: The shuttle moves pallets from the deep storage positions to the front side for easy forklift access.
- Shuttle Flexibility: Shuttles can be easily moved between different tunnels via forklift. One shuttle can serve multiple racking tunnels, depending on picking frequency and depth.

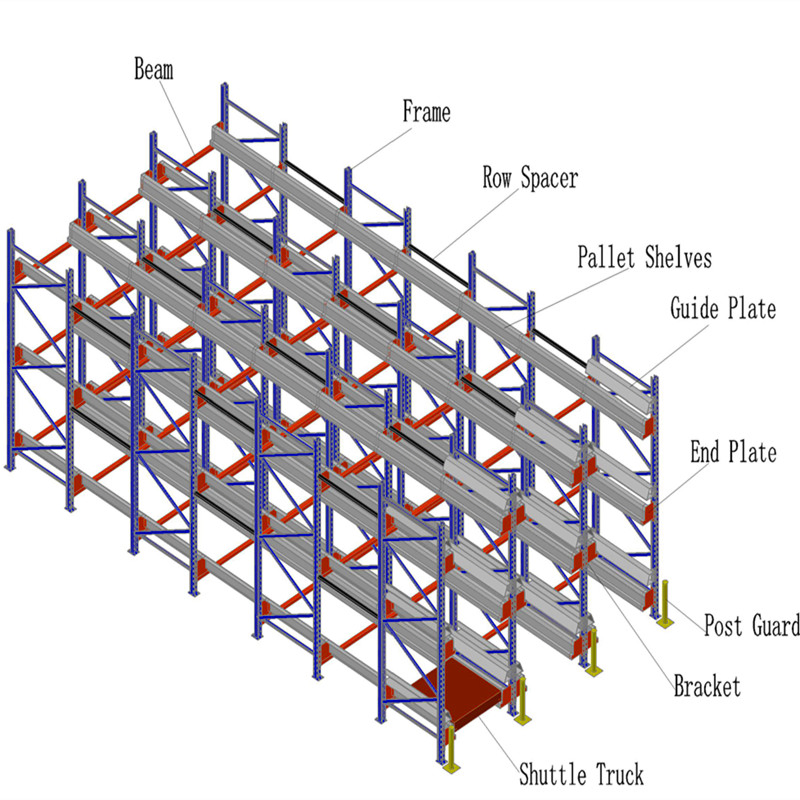

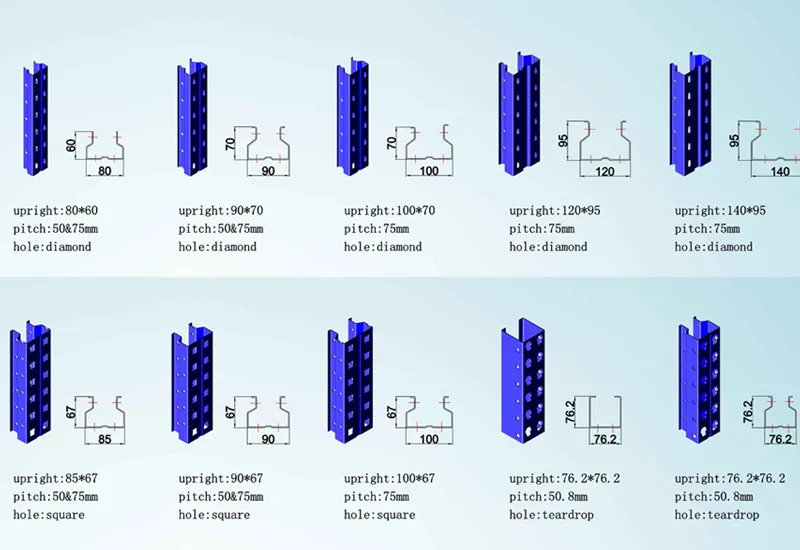

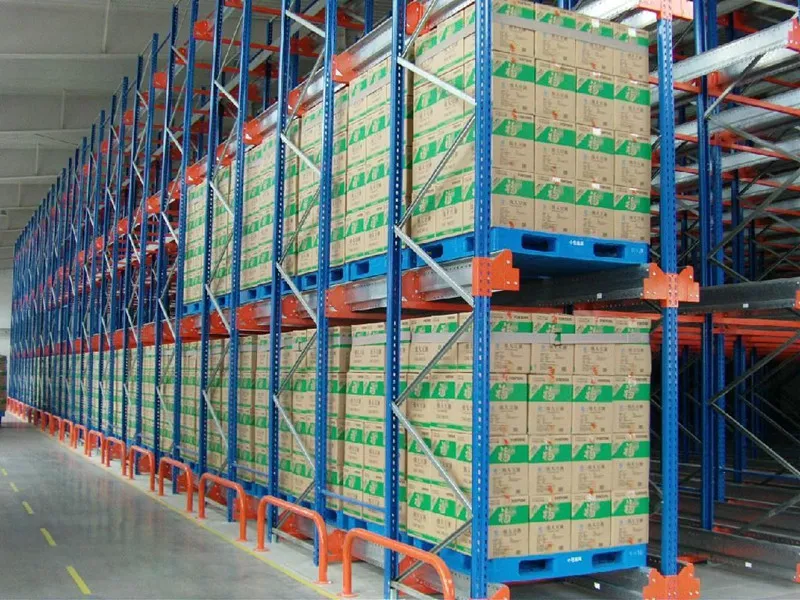

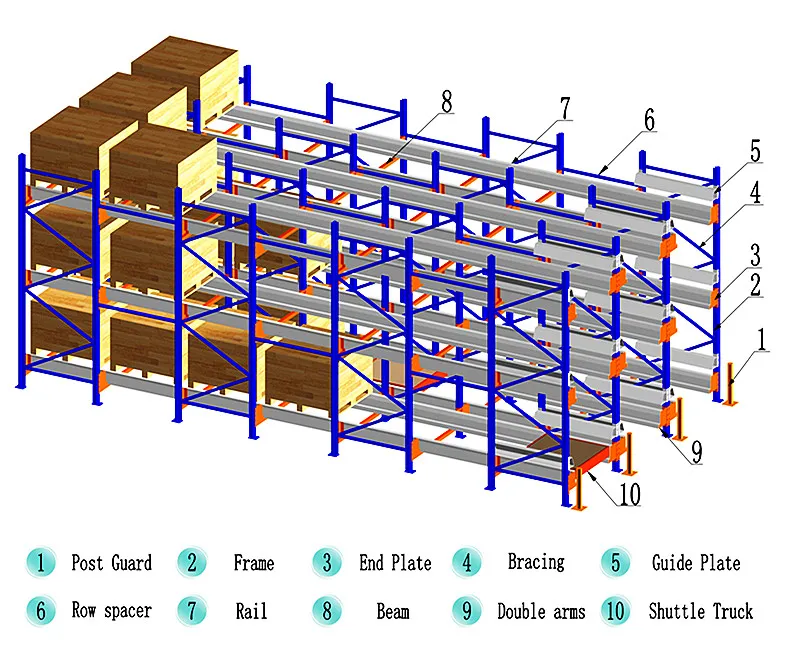

System Components
Technical Specifications
| Technical Parameters |
| Compatible Pallet Sizes |
W1200*D1000mm, W1200*D1200mm, W1200*D1100mm, W1200*D800mm |
| Material Grades |
Q235A (Normal Temp), Q235B (Cold Storage) |
| Surface Finish |
Environmental Protection Powder Coating |
| Structure Type |
Bolted or Welded Structure Options |
| Warranty |
One year against manufacturing defects; Lifetime consultation |
| Lead Time |
15-20 days for standard orders |

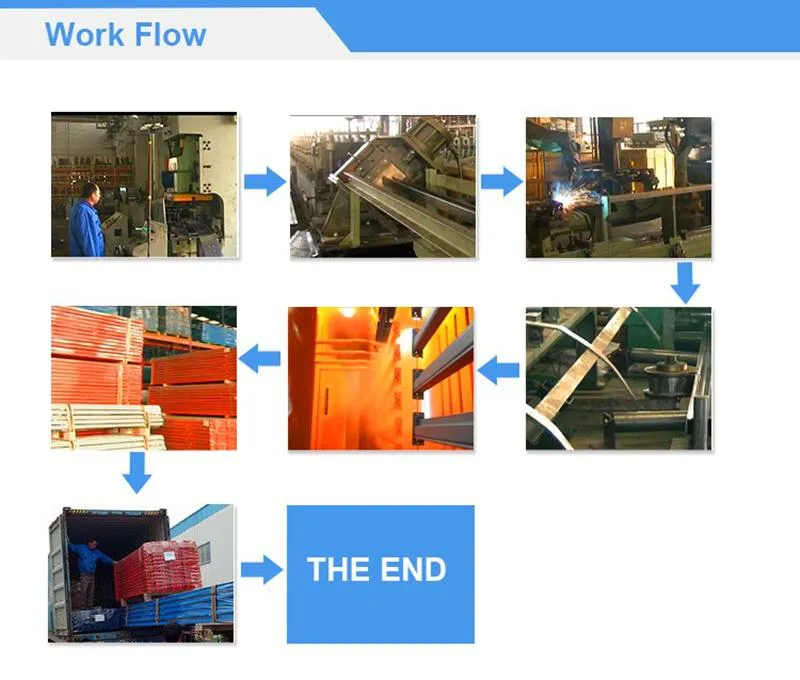

Production & Service Process
Customization Requirements
To provide an accurate quotation, please prepare the following details:
- Pallet Size (Length * Width * Loading Height including goods)
- Warehouse Layout or Dimensions (L * W * Net Height)
- Required Loading Capacity per pallet (kg)
- Number of storage levels desired

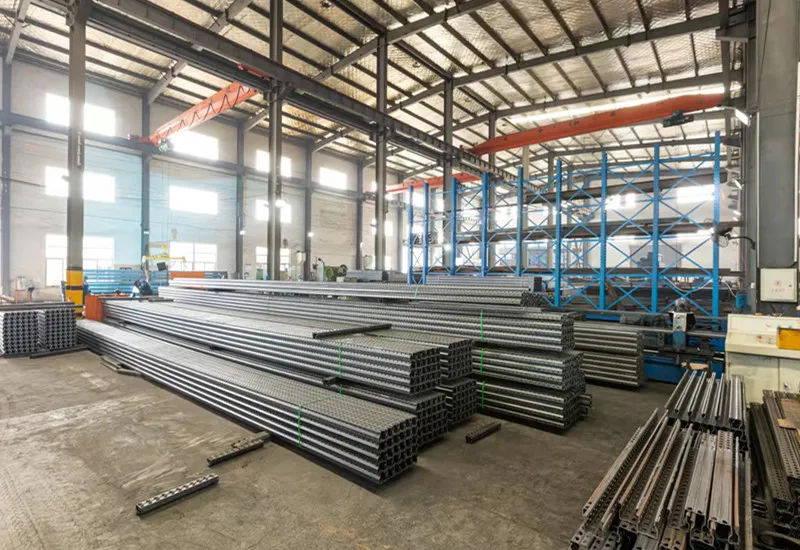

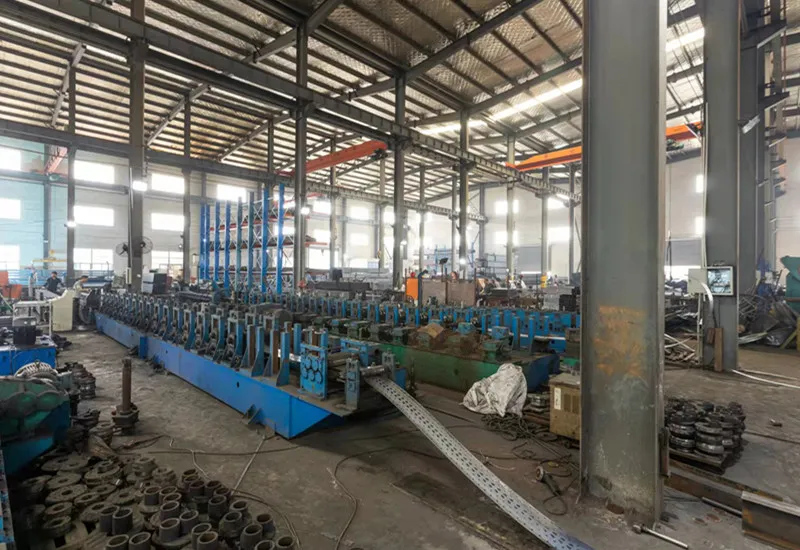

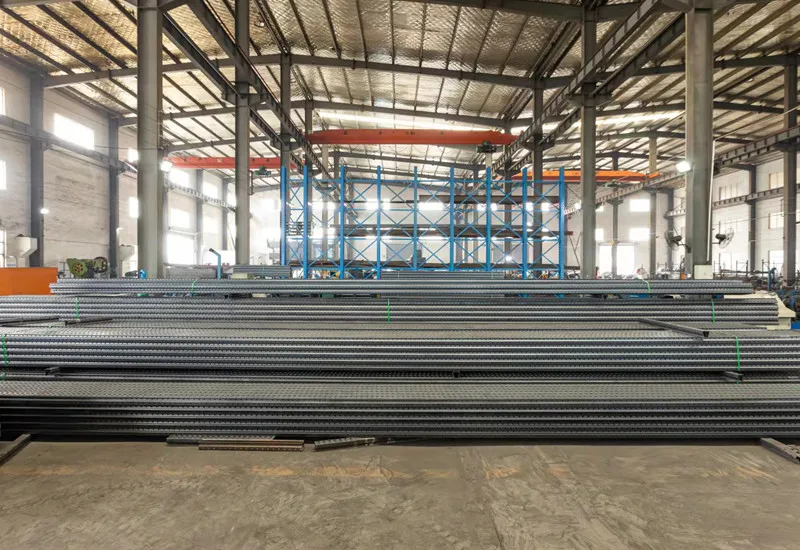

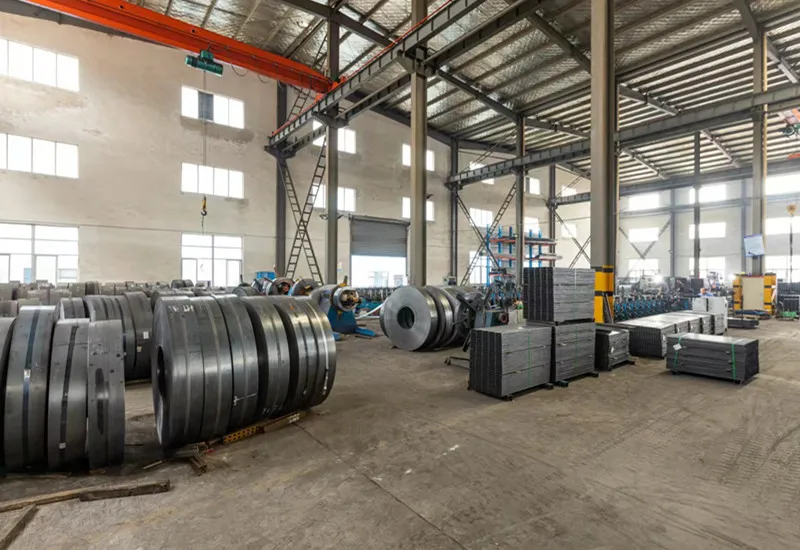

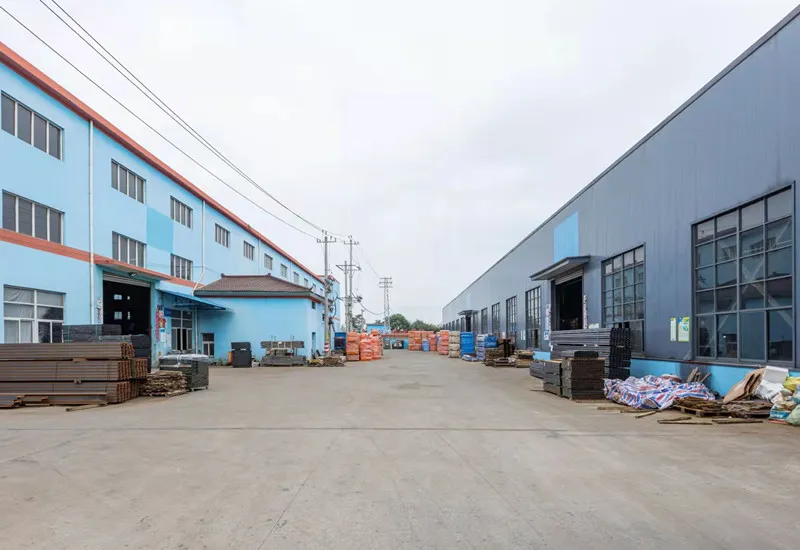

Factory Display
Frequently Asked Questions (FAQ)
How much space can the Shuttle Rack system save?
The radio shuttle racking system is a high-density storage solution that can increase warehouse space utilization to over 80% by reducing forklift aisles.
Are these racks suitable for cold storage environments?
Yes, we use high-quality Q235B steel specifically designed for cold storage rooms to ensure structural integrity at low temperatures.
What is the standard production and delivery time?
For normal orders, production is completed within 15 working days. Total delivery time is typically within 20 workdays.
Can I get a customized racking design for my warehouse?
Absolutely. All racks can be customized based on your specific pallet sizes, warehouse dimensions, and load capacity requirements.
How do I track the status of my order?
We provide regular updates including photos and videos of the production process to help you monitor the status of your order.
What are the accepted payment terms?
We typically require a 30% deposit in advance, with the remaining 70% balance due before shipment. We accept T/T, LC, and other secure methods.
