Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
1 / 5
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency
Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency

Chinese Manufacture Automated Warehouse Pallet Shelf Asrs with High Efficiency

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HYD-ASRS-R01
Structure
Rack
Type
Selective Pallet Racking
Mobility
Combined
Height
Customized
Weight
Customized
Closed
Open
Development
New Type
Serviceability
Common Use
Pallet Size
1*1.2 or Customzied
Function
Large Load Capacity Warehouse Storage
Material
Q235 STEEL
Product Description

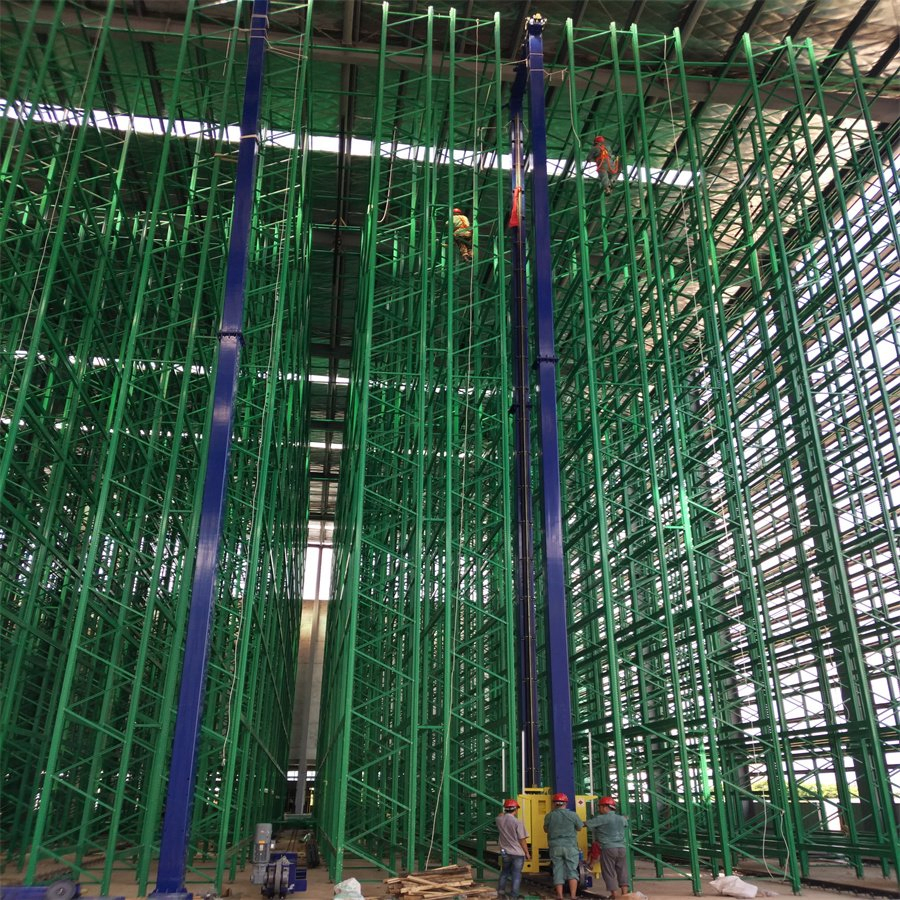

Automated Storage and Retrieval System (ASRS) for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves vertically within a single aisle. It is a computer-controlled system with extreme accuracy operating in very narrow aisles.
★

Space Optimization

Narrow aisles can be reduced to nearly 2000mm, creating 40% more space for warehouse storage.

★

Precision Engineering

Fully bolted to the floor slab, offering straight and robust racking catering to pallet weights and environmental loads.

★

High Efficiency

Integrated software allows for fast order fulfilment and consolidation for shipment.

The stacker crane is the core equipment of the system. The main body adopts a stable reinforced dual-mast structure, utilizing advanced walking devices and winch lifting designs. Use QR code precise positioning control in both horizontal and vertical directions. The machine features low driving noise and anti-low temperature design suitable for cold storage projects.
Product Parameters
Specification Item Details
MaterialQ235B / Q355 steel
SizeCustomized size / maximum use vertical space
Weight Capacity50kg-6000kg / pallet
StructureFree-standing or Rack supported Building Multi-level
Surface TreatmentPowder Coated

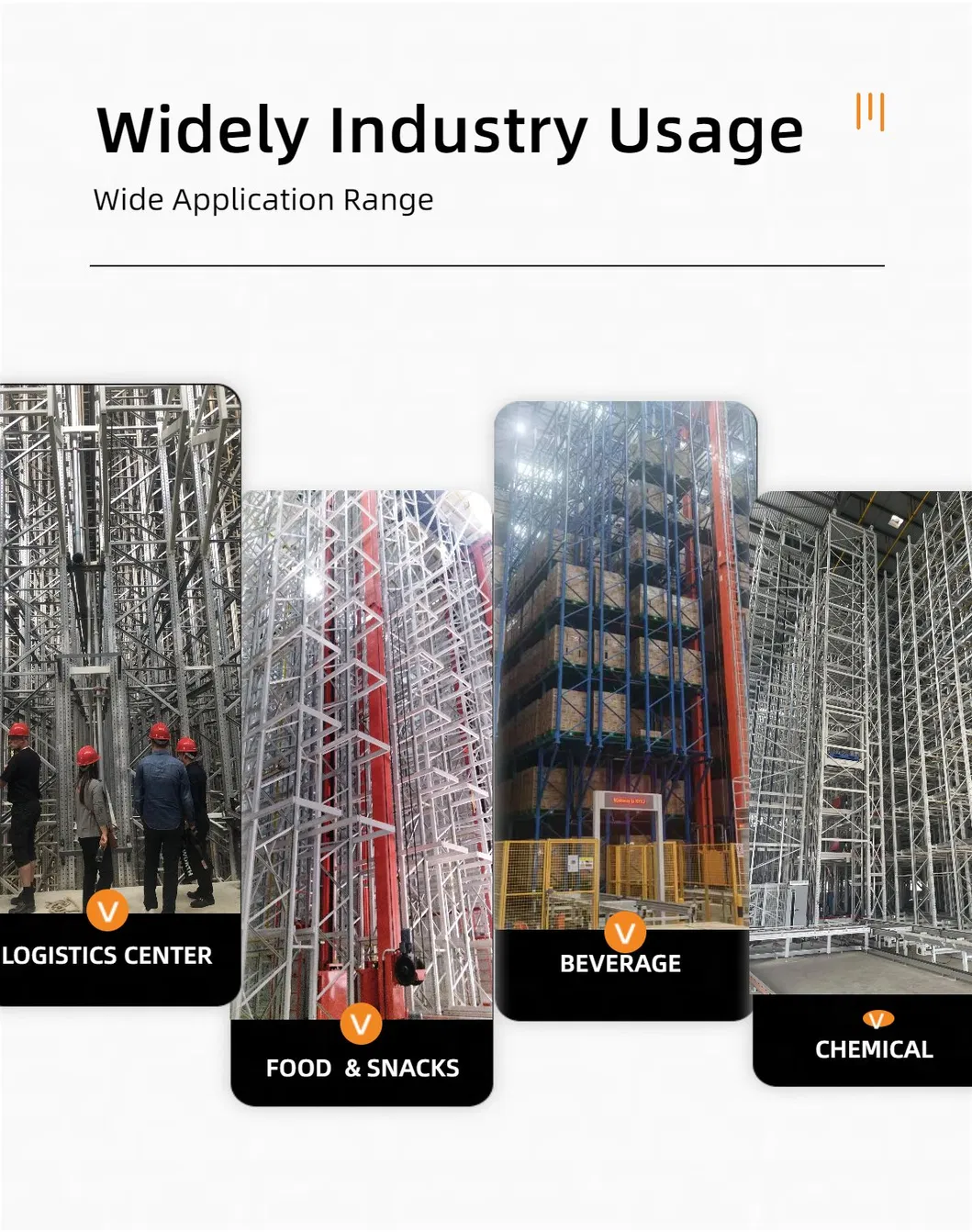

Industry ApplicationFood, Beverage, Cold Storage, Logistics, Pharmacy, etc.
CertificationISO 9001
Product Showcase

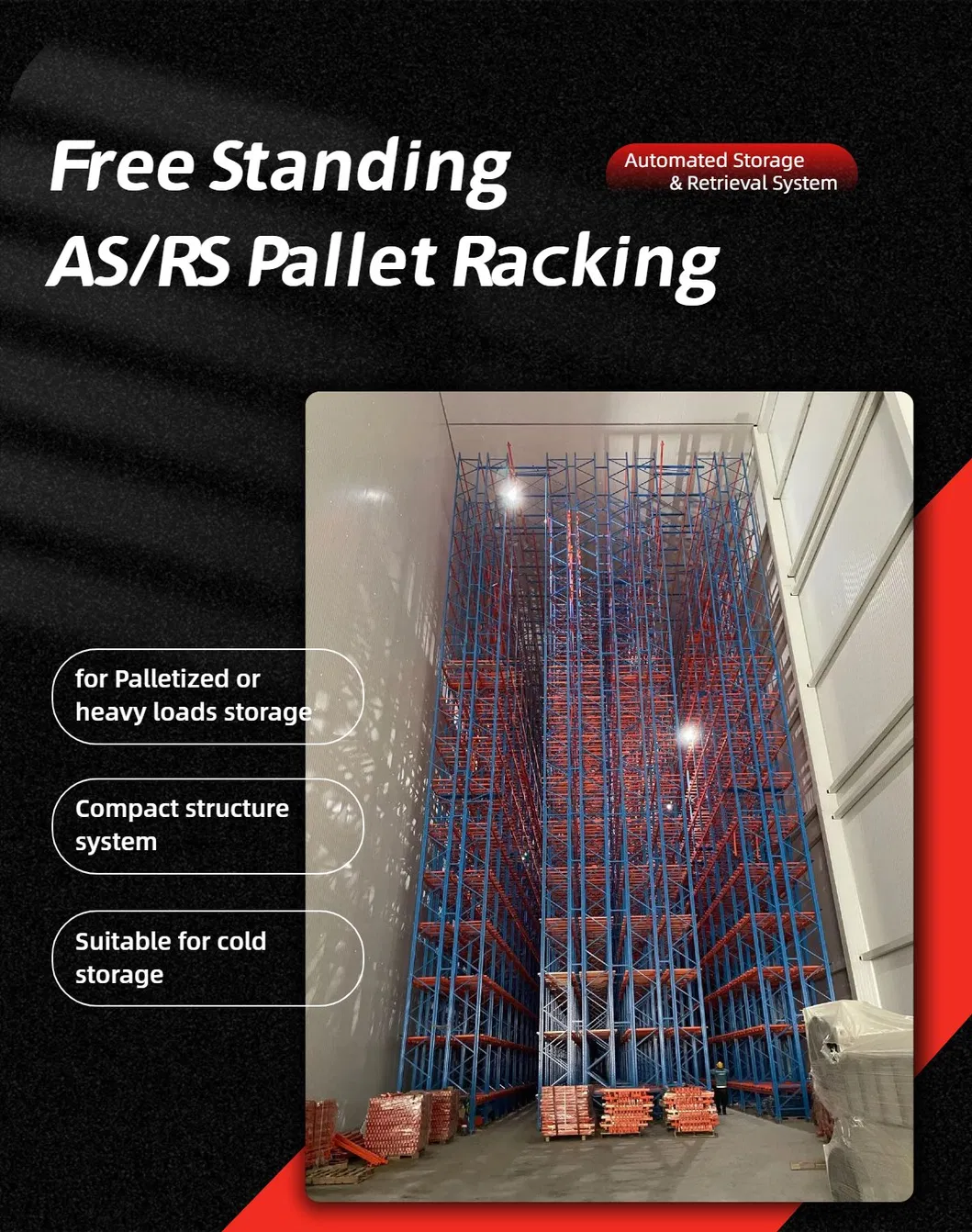

ASRS System 1
ASRS System 2
ASRS System 3

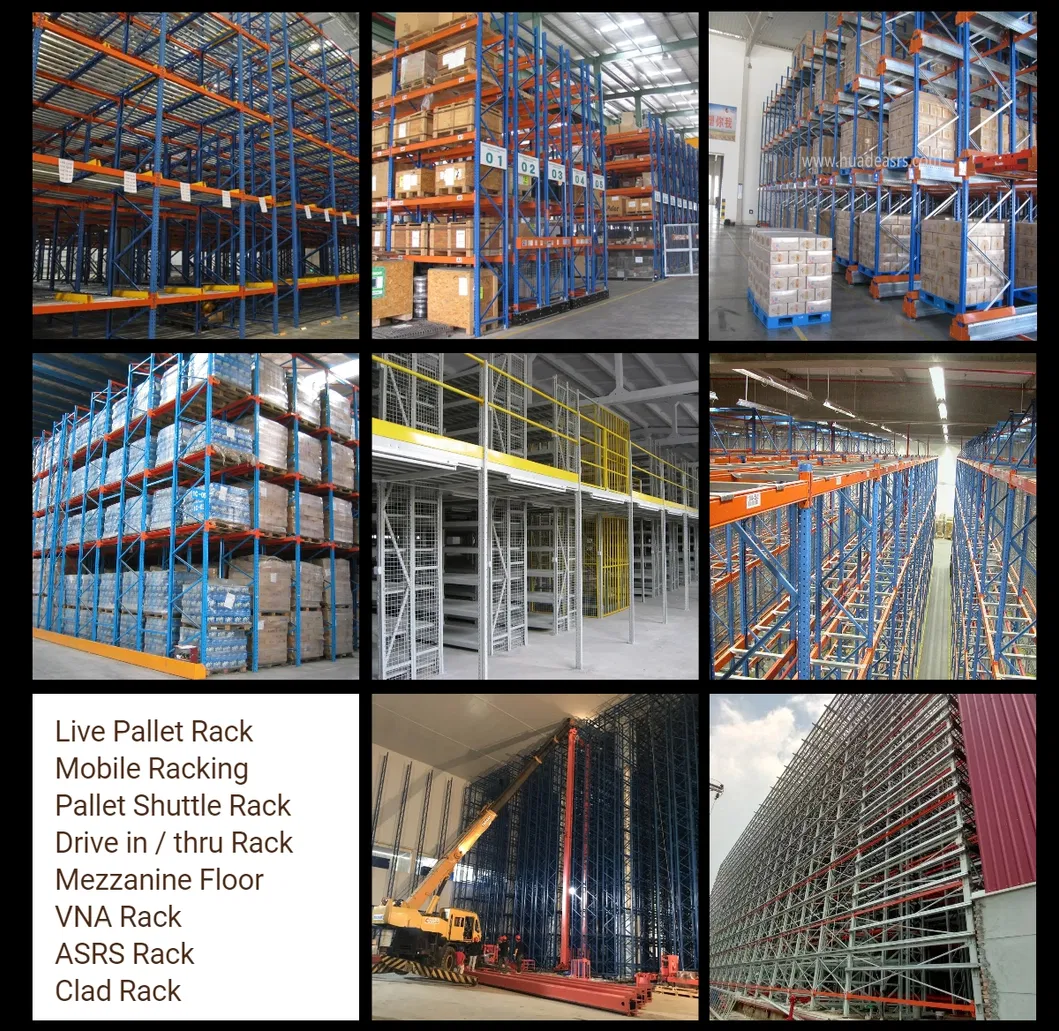

Racking Detail
System View
Workflow 1
Workflow 2

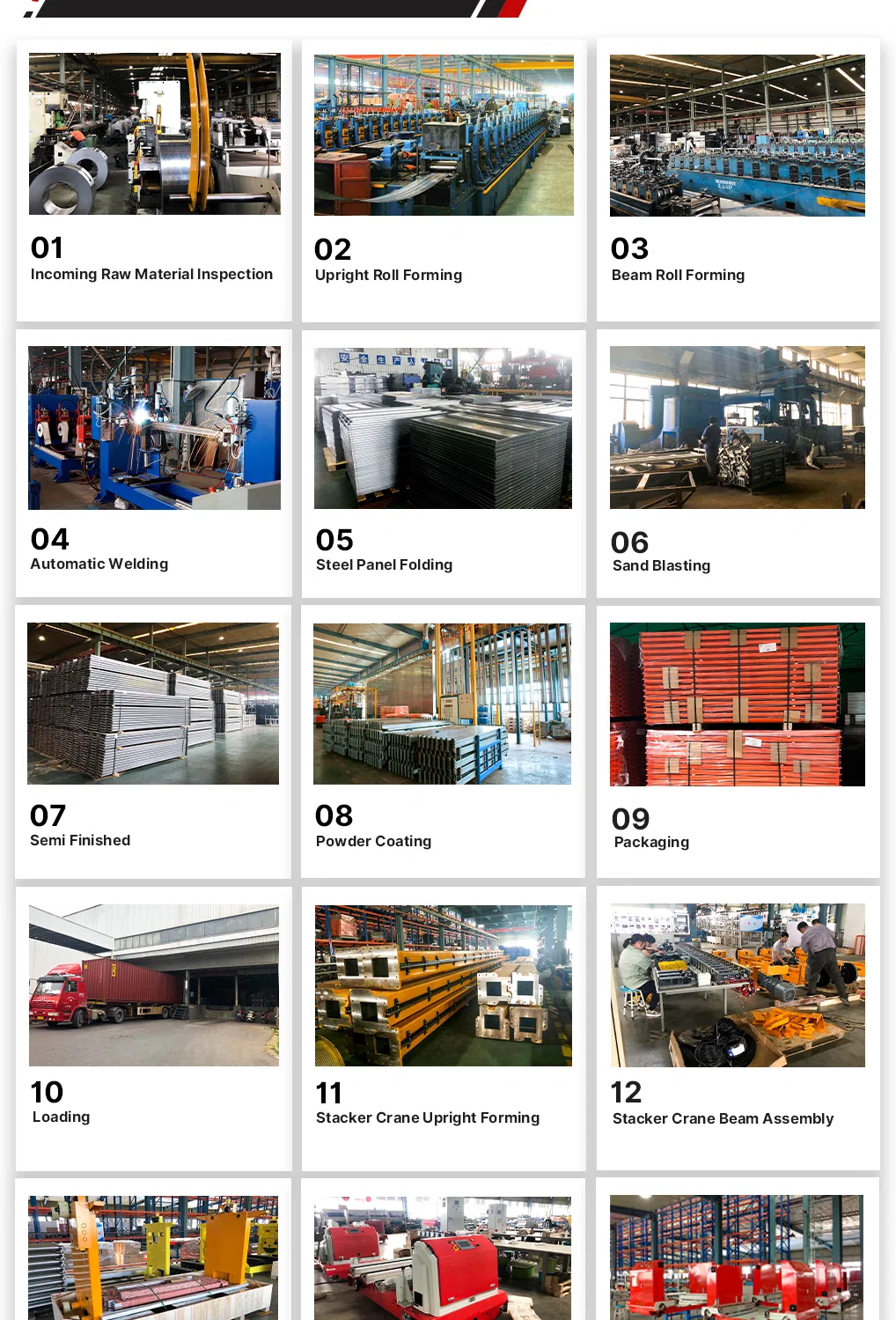

Workflow 3
Warehouse Components 1
Warehouse Components 2
Technical Drawing 1
Technical Drawing 2
Our Working Process
Step 1
Define: Engineers work with stakeholders to determine project objectives.
Step 2
Measure: Collect information to better understand the business logistics.
Step 3
Analyze: Create models that predict future states from operating systems.
Step 4
Design: Develop tailored racking and automation configurations.
Step 5
Validate: Estimate system costs and determine feasibility.
Step 6
Presentation: Final presentation of costs and the best storage solution.
Frequently Asked Questions
What types of ASRS systems are available?
We offer Unitload AS/RS (for pallets), Miniload AS/RS (for boxes/crates), Shuttle Storage systems, and Rack-supported buildings.
How much space can an ASRS save?
Due to the narrow aisle design (as small as 2000mm), an ASRS can create up to 40% more storage space compared to traditional racking systems.
What is the maximum weight capacity per pallet?
The system is designed to handle a wide range of loads, typically from 50kg up to 6000kg per pallet, depending on customized specifications.
Can the system be used in cold storage?
Yes, the stacker cranes and rack structures feature specialized anti-low temperature designs, making them ideal for deep-freeze warehouse projects.
What height can the racking reach?
The fully bolted system offers high stability and reliability for high-bay warehouses up to 45 meters in height.
What positioning technology is used for the cranes?
The system utilizes QR code precise positioning control in both horizontal and vertical directions to ensure high accuracy and speed.
