Stainless Steel Console Mode Advanced Customized Great Quality Factory Price Metal Telecom Cabinet

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
RODF276560ACK5W
Installation
Vertical
Fan Number
One
Capacity
18u, 22u, 27u, 32u, 42u
Certification
CE, ISO, RoHS
IP Rated
IP55
Standard
ANSI/Eia RS-310-D
Warranty
1 Year
Material
SPCC, Stainless Steel
Origin
China

Product Description

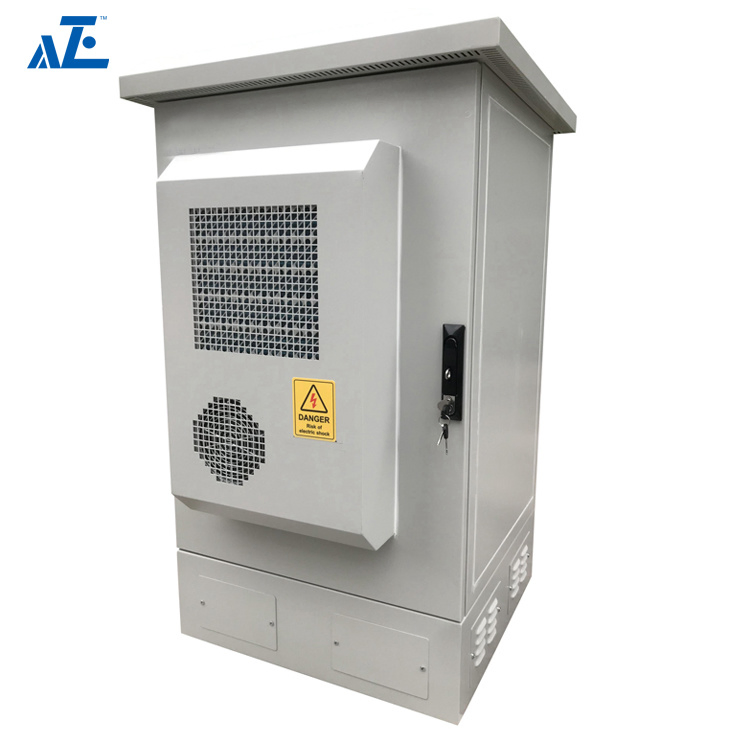

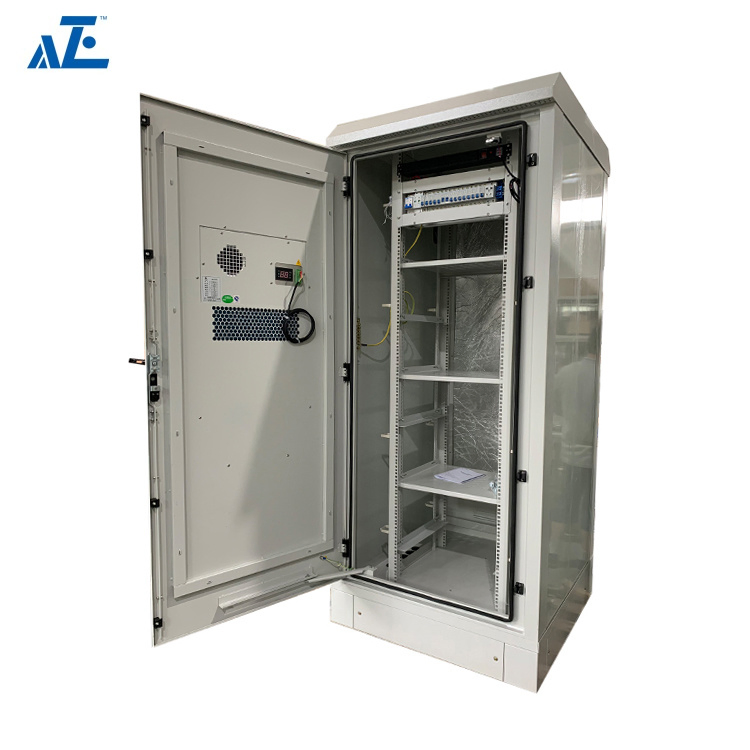

27RU 650mm Wide x 600mm Deep OUTDOOR Cabinet with AC500W Air Conditioner IP55 Rated - Grey

The Outdoor Telecommunication Cabinet with Air Conditioner is primarily used for wireless communication base stations, including new generation 4G systems, communication networks/network integrated services, access/transmission switching stations, and emergency communication/transmission. Designed for versatility, this cost-effective solution features a unique cube design allowing for various cabinet heights.

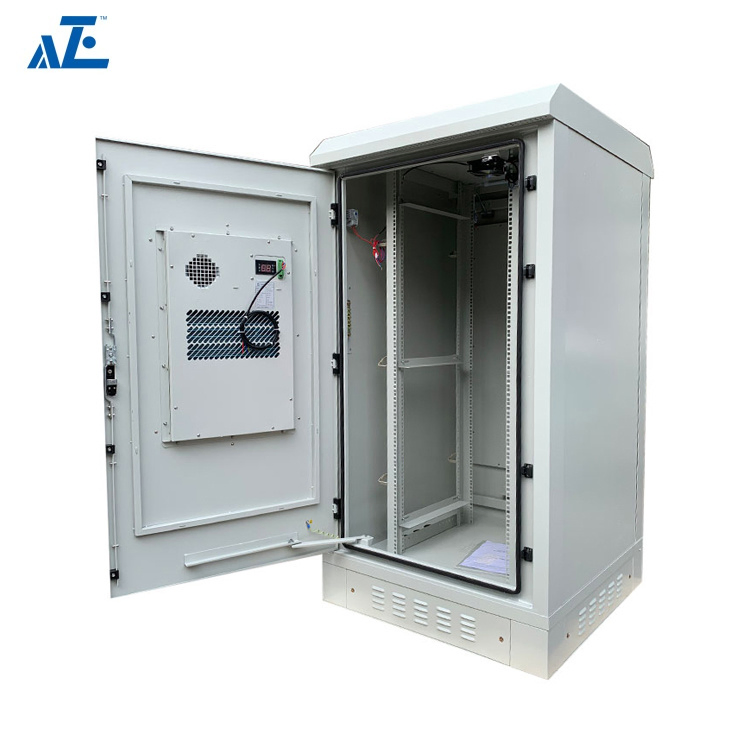

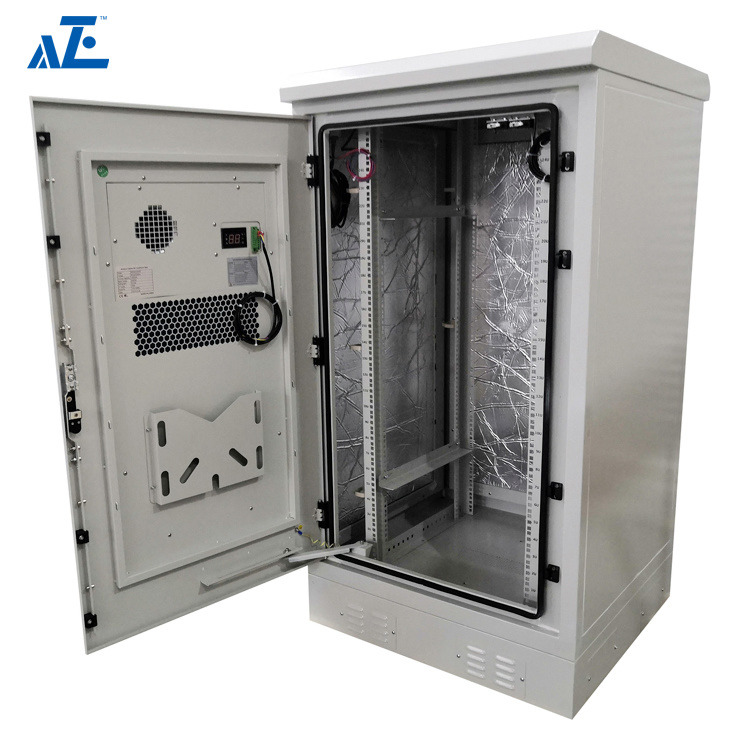

Built with durable construction, this outdoor cabinet incorporates tailored air conditioners to maintain sensitive electronics in extreme environments.

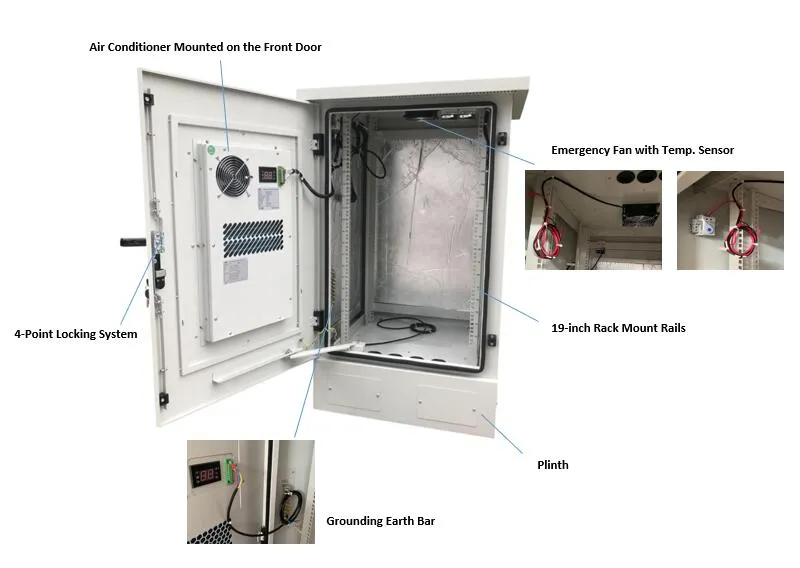

  • Material: SPCC, stainless steel, galvanized steel or customized requirements.
  • Cooling System: Integrated Air conditioner (Fans or Heat exchange).
  • Protection Level: IP55 Waterproof and dust-proof.
  • Sealing: Imported seal belts and air filter instruments for efficient protection.
  • Security: All fixings are internal to provide a secure solution.

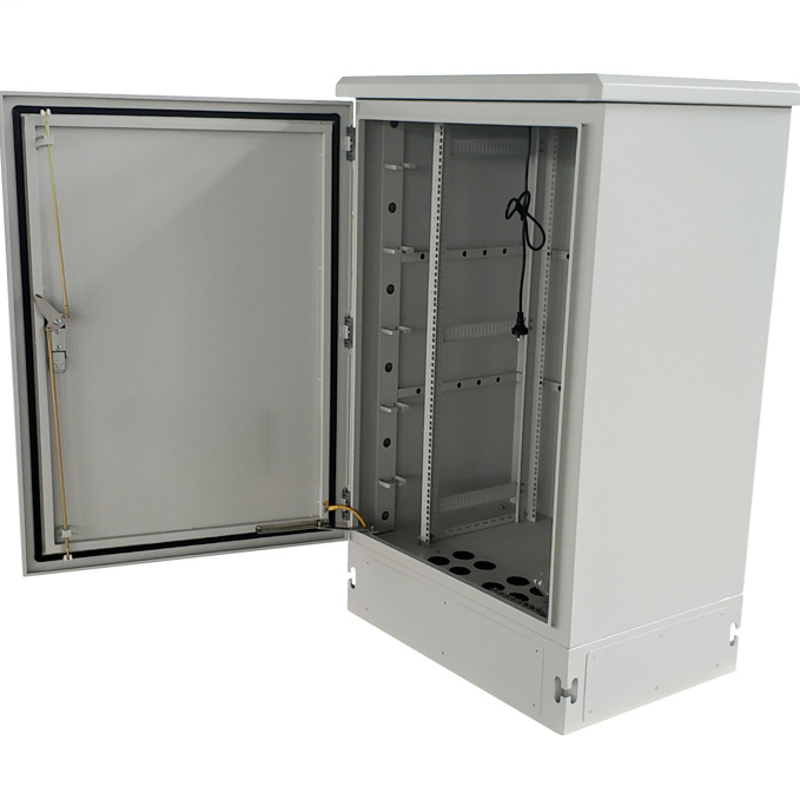

  • Standard: 19" mounting rails front and rear.
  • Base: Includes plinth for floor mounting with cable grommets.

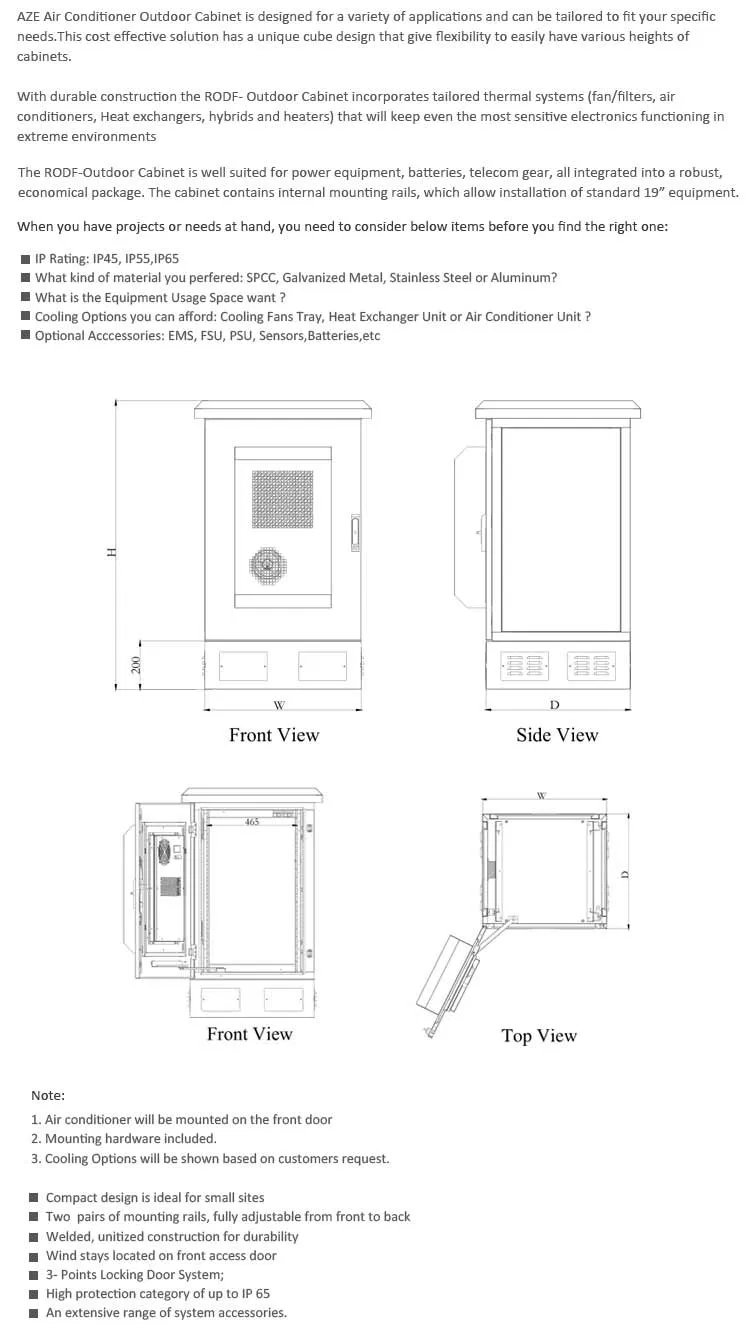

Internal Structure

Product Selection Matrix

Model Unit Dimension Description
RODF188075ACK4W800x750x18U18RU 800mmW x 750mmD Outdoor Cabinet with AC400W Air Conditioner
RODF228075ACK4W800x750x22U22RU 800mmW x 750mmD Outdoor Cabinet with AC400W Air Conditioner
RODF278075ACK5W800x750x27U27RU 800mmW x 750mmD Outdoor Cabinet with AC500W Air Conditioner
RODF328075AC1K5W800x750x32U32RU 800mmW x 750mmD Outdoor Cabinet with AC1500W Air Conditioner
RODF186560ACK4W650x600x18U18RU 650mmW x 600mmD Outdoor Cabinet with AC400W Air Conditioner
RODF276560ACK5W650x600x27U27RU 650mmW x 600mmD Outdoor Cabinet with AC500W Air Conditioner

Optional Accessories

Item Specifications
Power SupplyAC INPUT: 32A/1P MCB or 63A/2P MCB; DC OUTPUT: 16A/1P MCB
Environment Monitoring48VDC Communication port: RS485, TCP/IP, SNMP optional
SensorsDoor Sensor, Water Sensor, Smoke Sensor, Tilt & Shock Sensor
Cooling OptionsAir Conditioner (300w-5000w), Heat Exchanger, or TEC Cooler

Frequently Asked Questions

Are you a manufacturer?
Yes, we are an experienced manufacturer with a professional customer support team, experienced R&D team and efficient production lines.
Do you have any MOQ limit for outdoor cabinets?
We offer a low MOQ, and 1pc for sample checking is available.
Can you customize products based on requirements?
Yes, we provide full OEM & ODM services to tailor products to your specific needs.
How long is the product warranty?
We guarantee all our products with a 12-month warranty covering non-artificial damage.
How do you ship the goods and how long does it take?
Sample orders are shipped via UPS, FedEx, or DHL (7-14 days). Bulk orders are typically shipped via sea container (approx. 30-35 days).
What are your payment terms?
Our standard terms are 50% T/T in advance and 50% against the B/L copy.
